Understanding Chassis and Frame Parts: Backbone of Every Vehicle

When it comes to automotive engineering, the chassis and frame form the foundation of any vehicle. While often overlooked by car owners and enthusiasts, these components are critical to a vehicle’s structural integrity, performance, and safety.

In this post, we’ll break down:

• What the chassis and frame actually are

• Key components and their functions

• Popular manufacturers in the chassis and frame industry

🚗 What Is a Car Chassis?

The chassis is the underlying structure of a vehicle to which all other components are attached. It provides strength, rigidity, and stability to the vehicle, serving as the skeleton.

The term "chassis" is often used interchangeably with "frame", but technically:

• Chassis = Frame + Suspension + Steering + Wheels + Brakes

• Frame = Just the structural backbone (no mechanical parts)

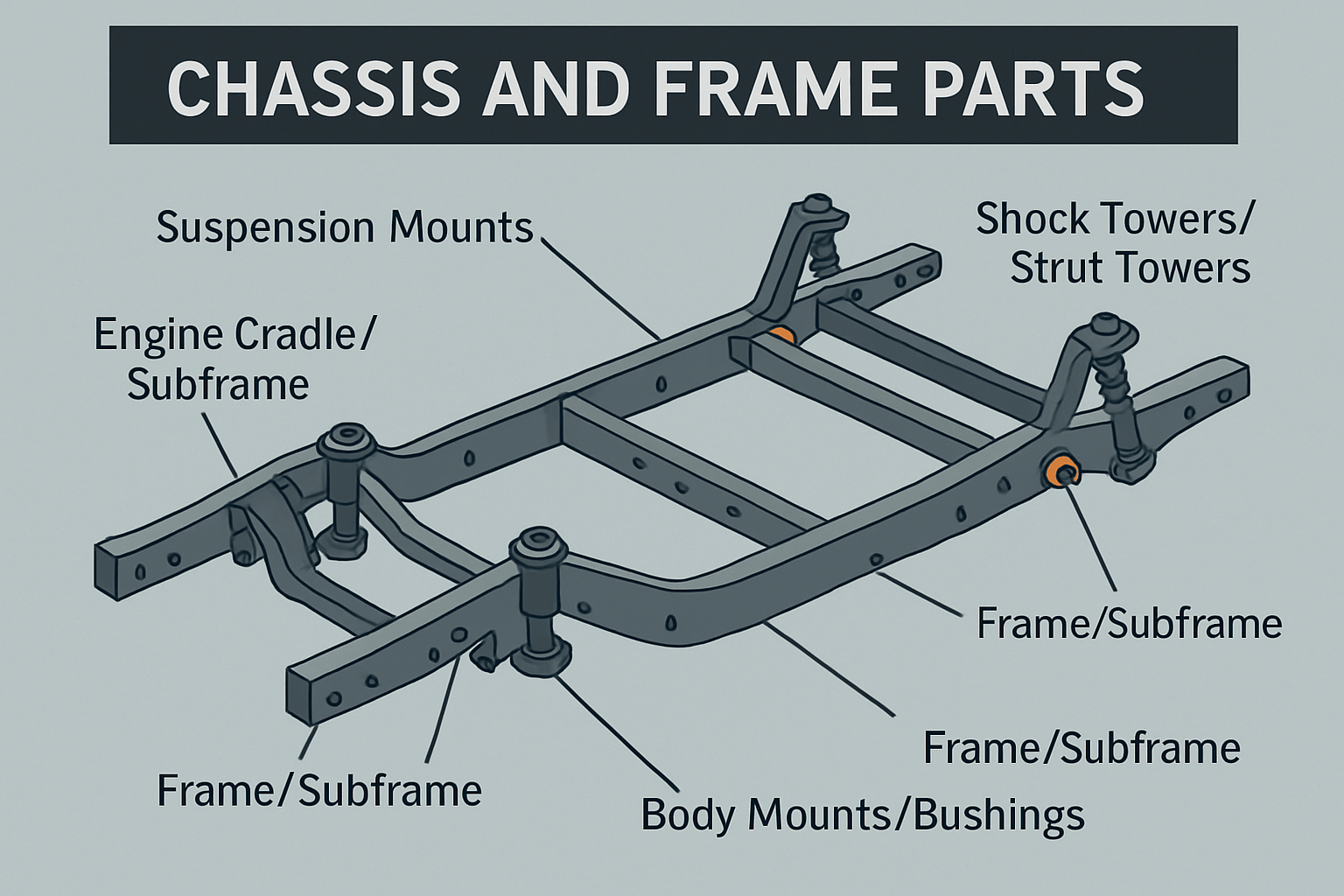

🧩 Key Chassis and Frame Components & Their Functions

Here are the major parts that make up a car's chassis and frame system:

1. Frame / Subframe

• Function: Main structural support; bears weight and absorbs stress.

• Types:

  • Ladder Frame (common in trucks, SUVs)

  • Monocoque / Unibody (common in cars)

  • Space Frame (used in sports cars, high-performance vehicles)

2. Crossmembers

• Function: Lateral bars connecting the left and right sides of the frame.

• Purpose: Adds rigidity and supports components like engines, gearboxes, and radiators.

3. Engine Cradle / Subframe

• Function: Supports the engine and sometimes the front suspension.

• Bonus: Can help isolate engine vibration from the cabin.

4. Suspension Mounts

• Function: Connection points for suspension systems (control arms, struts).

• Why It Matters: Vital for absorbing shocks and providing a smooth ride.

5. Shock Towers / Strut Towers

• Function: Structural mounting points for suspension shocks/struts.

• Important For: Vehicle handling and cornering stability.

6. Body Mounts / Bushings

• Function: Rubber or polyurethane components that isolate vibration between body and frame.

• Effect: Improve comfort and reduce road noise.

7. Side Rails

• Function: Longitudinal beams running the length of the vehicle.

• Why It’s Important: Bear the majority of torsional loads and impacts.

🏢 Popular Chassis and Frame Manufacturers

Whether for OEM or aftermarket performance parts, these companies lead in design, innovation, and durability:

🔹 Magna International

• One of the largest auto parts manufacturers globally.

• Supplies lightweight frames and modular chassis to Ford, GM, Toyota.

🔹 Dana Incorporated

• Known for axles, drive shafts, and chassis frame components.

• Supplies to Jeep, Nissan, and commercial vehicle makers.

🔹 Gestamp

• Spanish multinational specializing in structural and body components.

• Focuses on lightweight, high-strength steel and hot stamping.

🔹 Tower International

• Major supplier of metal-formed chassis structures and frames.

• Works with Ford, BMW, and Honda.

🔹 Aisin Seiki (Toyota Group)

• Supplies chassis components like frames, suspensions, and brakes.

• Key supplier for Toyota and Lexus vehicles.

🔹 Multimatic

• Canadian company that supplies carbon-fiber frames and components.

• Known for performance parts used in the Ford GT and Aston Martin models.

🔧 Chassis Modifications & Repairs

Car owners may need to repair or upgrade chassis components if:

• The frame is bent from an accident

• Rust is compromising structural integrity

• Upgrading to aftermarket suspensions or crossmembers for better performance

Always ensure frame work is done by certified professionals, especially for welding or alignment-related jobs.

🏁 Final Thoughts

The chassis and frame may not be visible like shiny body panels or flashy wheels, but they’re arguably the most important part of your vehicle. A good chassis ensures not only durability and safety but also plays a major role in how the car handles, brakes, and accelerates.

Whether you’re a car enthusiast or someone looking to understand your vehicle better, knowing your chassis is like knowing the bones of your car—it’s where everything starts.
